# 										项目——数码参考手册(dpm)

---



## 项目搭建

### 一、mysql数据库设计

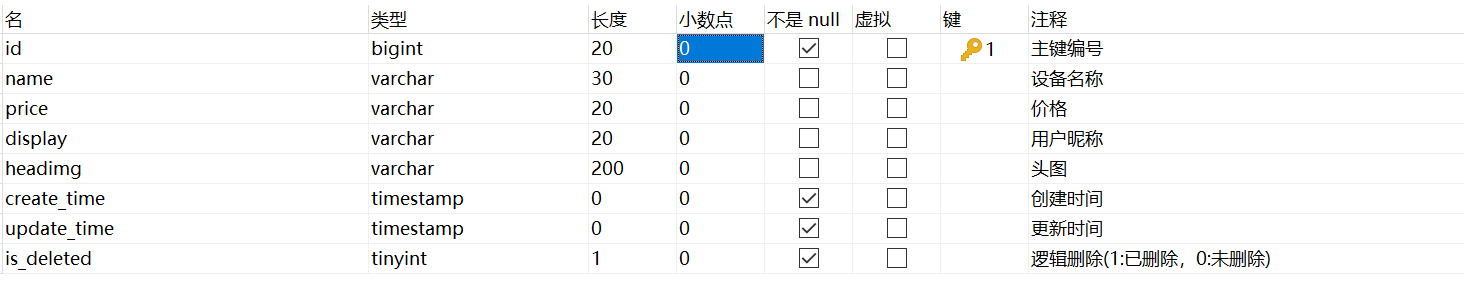

product_parameeters

![image-20210909205915135](https://typora-blog.oss-cn-qingdao.aliyuncs.com/image-20210909205915135.png)

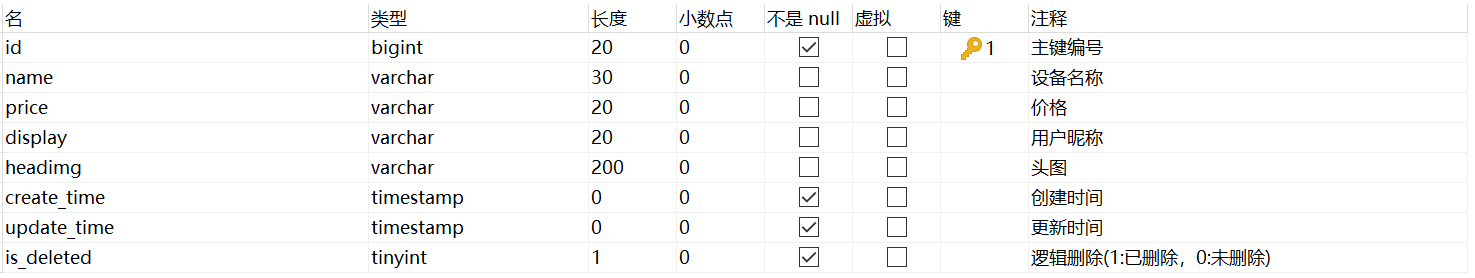

user_info

![image-20210909210040990](https://typora-blog.oss-cn-qingdao.aliyuncs.com/image-20210909210040990.png)

### 二、创建父工程dpm

 1、创建SpringBoot项目

Group：com.atguigu

Artifact：srz

2、删除src目录

3、配置SpringBoot版本()

```xml
<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.3.4.RELEASE</version>
</parent>
```

4.配置pom依赖ban'ben

```xml
<properties>
    <java.version>1.8</java.version>
    <spring-cloud-alibaba.version>2.2.2.RELEASE</spring-cloud-alibaba.version>
    <spring-cloud.version>Hoxton.SR8</spring-cloud.version>
    <mybatis-plus.version>3.4.1</mybatis-plus.version>
    <velocity.version>2.0</velocity.version>
    <swagger.version>2.9.2</swagger.version>
    <swagger-bootstrap-ui.version>1.9.2</swagger-bootstrap-ui.version>
    <commons-lang3.version>3.9</commons-lang3.version>
    <commons-fileupload.version>1.3.1</commons-fileupload.version>
    <commons-io.version>2.6</commons-io.version>
    <alibaba.easyexcel.version>2.1.1</alibaba.easyexcel.version>
    <apache.xmlbeans.version>3.1.0</apache.xmlbeans.version>
    <fastjson.version>1.2.28</fastjson.version>
    <gson.version>2.8.2</gson.version>
    <json.version>20170516</json.version>
    <aliyun-java-sdk-core.version>4.3.3</aliyun-java-sdk-core.version>
    <aliyun-sdk-oss.version>3.10.2</aliyun-sdk-oss.version>
    <jodatime.version>2.10.1</jodatime.version>
    <jwt.version>0.7.0</jwt.version>
    <httpclient.version>4.5.1</httpclient.version>
</properties>
```

5.配置pom依赖管理

```xml
<dependencyManagement>
    <dependencies>
        <!--Spring Cloud-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-dependencies</artifactId>
            <version>${spring-cloud.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>

        <!--Spring Cloud Alibaba-->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-dependencies</artifactId>
            <version>${spring-cloud-alibaba.version}</version>
            <type>pom</type>
            <scope>import</scope>
        </dependency>

        <!--mybatis-plus-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>${mybatis-plus.version}</version>
        </dependency>
        <!--mybatis-plus 代码生成器-->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>${mybatis-plus.version}</version>
        </dependency>
        <!-- Mybatis Plus 代码生成器模板引擎,  -->
        <dependency>
            <groupId>org.apache.velocity</groupId>
            <artifactId>velocity-engine-core</artifactId>
            <version>${velocity.version}</version>
        </dependency>

        <!--swagger-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>${swagger.version}</version>
        </dependency>
        <!--swagger ui-->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>${swagger.version}</version>
        </dependency>
        <!--swagger-bootstrap-ui-->
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>swagger-bootstrap-ui</artifactId>
            <version>${swagger-bootstrap-ui.version}</version>
        </dependency>

        <!--commons-lang3-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>${commons-lang3.version}</version>
        </dependency>

        <!--文件上传-->
        <dependency>
            <groupId>commons-fileupload</groupId>
            <artifactId>commons-fileupload</artifactId>
            <version>${commons-fileupload.version}</version>
        </dependency>

        <!--commons-io-->
        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>${commons-io.version}</version>
        </dependency>

        <!--excel解析-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>easyexcel</artifactId>
            <version>${alibaba.easyexcel.version}</version>
        </dependency>
        <!--excel解析依赖-->
        <dependency>
            <groupId>org.apache.xmlbeans</groupId>
            <artifactId>xmlbeans</artifactId>
            <version>${apache.xmlbeans.version}</version>
        </dependency>

        <!--json-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>${fastjson.version}</version>
        </dependency>
        <dependency>
            <groupId>org.json</groupId>
            <artifactId>json</artifactId>
            <version>${json.version}</version>
        </dependency>
        <dependency>
            <groupId>com.google.code.gson</groupId>
            <artifactId>gson</artifactId>
            <version>${gson.version}</version>
        </dependency>

        <!--阿里云SDK远程调用-->
        <dependency>
            <groupId>com.aliyun</groupId>
            <artifactId>aliyun-java-sdk-core</artifactId>
            <version>${aliyun-java-sdk-core.version}</version>
        </dependency>

        <!--阿里云文件管理-->
        <dependency>
            <groupId>com.aliyun.oss</groupId>
            <artifactId>aliyun-sdk-oss</artifactId>
            <version>${aliyun-sdk-oss.version}</version>
        </dependency>

        <!--日期时间工具-->
        <dependency>
            <groupId>joda-time</groupId>
            <artifactId>joda-time</artifactId>
            <version>${jodatime.version}</version>
        </dependency>

        <!--jwt工具-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>${jwt.version}</version>
        </dependency>

        <!--httpclient-->
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>${httpclient.version}</version>
        </dependency>


    </dependencies>
</dependencyManagement>

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>
```

 二、创建模块song-common

1、创建Maven模块

在srb下创建普通maven模块

Group：com.srz

Artifact：song-common

2.配置pom

```xml
<dependencies>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <!--lombok用来简化实体类：需要安装lombok插件-->
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
    </dependency>
</dependencies>
```

三、创建模块service-base

1、创建Maven模块

在srb下创建普通maven模块

Group：com.atguigu

Artifact：service-base

2、配置pom

注意：依赖guigu-common

```xml
<dependencies>
    <dependency>
        <groupId>com.atguigu</groupId>
        <artifactId>guigu-common</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>
    <!--swagger-->
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger2</artifactId>
    </dependency>
    <!--swagger ui-->
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-swagger-ui</artifactId>
    </dependency>
</dependencies>
```

四、创建模块service-core

 1、创建Maven模块

在srb下创建普通maven模块

Group：com.atguigu

Artifact：service-core

2、配置pom

注意：依赖service-base

```xml
<dependencies>

    <dependency>
        <groupId>com.atguigu</groupId>
        <artifactId>service-base</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </dependency>

    <!--mysql-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
    </dependency>

    <!--mybatis-plus-->
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-boot-starter</artifactId>
    </dependency>
    <!--mybatis-plus 代码生成器-->
    <dependency>
        <groupId>com.baomidou</groupId>
        <artifactId>mybatis-plus-generator</artifactId>
    </dependency>
    <!-- Mybatis Plus 代码生成器模板引擎,  -->
    <dependency>
        <groupId>org.apache.velocity</groupId>
        <artifactId>velocity-engine-core</artifactId>
    </dependency>
</dependencies>
```

五、使用代码生成器生成

controllrt

service

pojo.entity

六、启动应用程序

1、创建application.yml

```xml
server:
  port: 8110 # 服务端口

spring:
  profiles:
    active: dev # 环境设置
  application:
    name: service-core # 服务名
  datasource: # mysql数据库连接
    type: com.zaxxer.hikari.HikariDataSource
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/srb_core?serverTimezone=GMT%2B8&characterEncoding=utf-8
    username: 自己的
    password: 自己的

mybatis-plus: #mybatis
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
  mapper-locations: classpath:com/atguigu/srb/core/mapper/xml/*.xml
```

2、创建SpringBoot配置文件

在service-core中创建config包，创建MybatisPlusConfig类

```java
package com.srz.dpm.core.config;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Configuration
@MapperScan("com.srz.dpm.core.mapper")
@EnableTransactionManagement //事务处理
public class MybatisPlusConfig {

    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));//分页
        return interceptor;
    }
}
```

3、创建SpringBoot启动类

注意：扫描com.atguigu.srb\

```java
package com.srz.dpm.core;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@SpringBootApplication
@ComponentScan({"com.srz.dpm"})
@EnableSwagger2


public class ServiceCoreApplication {

    public static void main(String[] args) {
        SpringApplication.run(ServiceCoreApplication.class, args);
    }
}
```

4、运行启动类

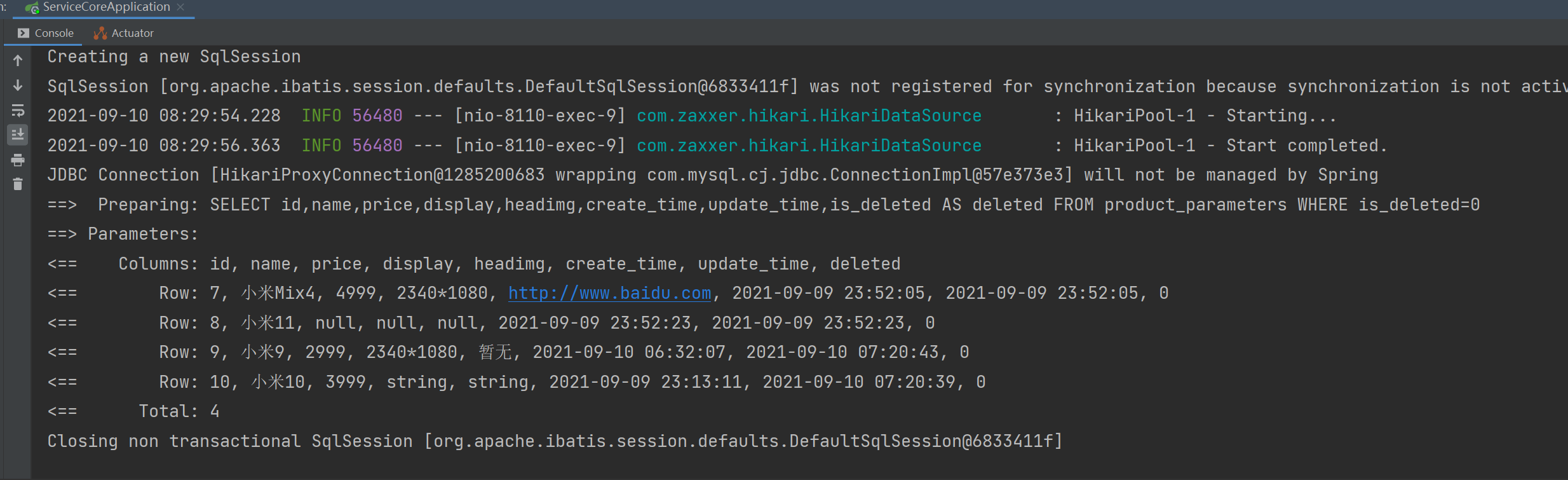

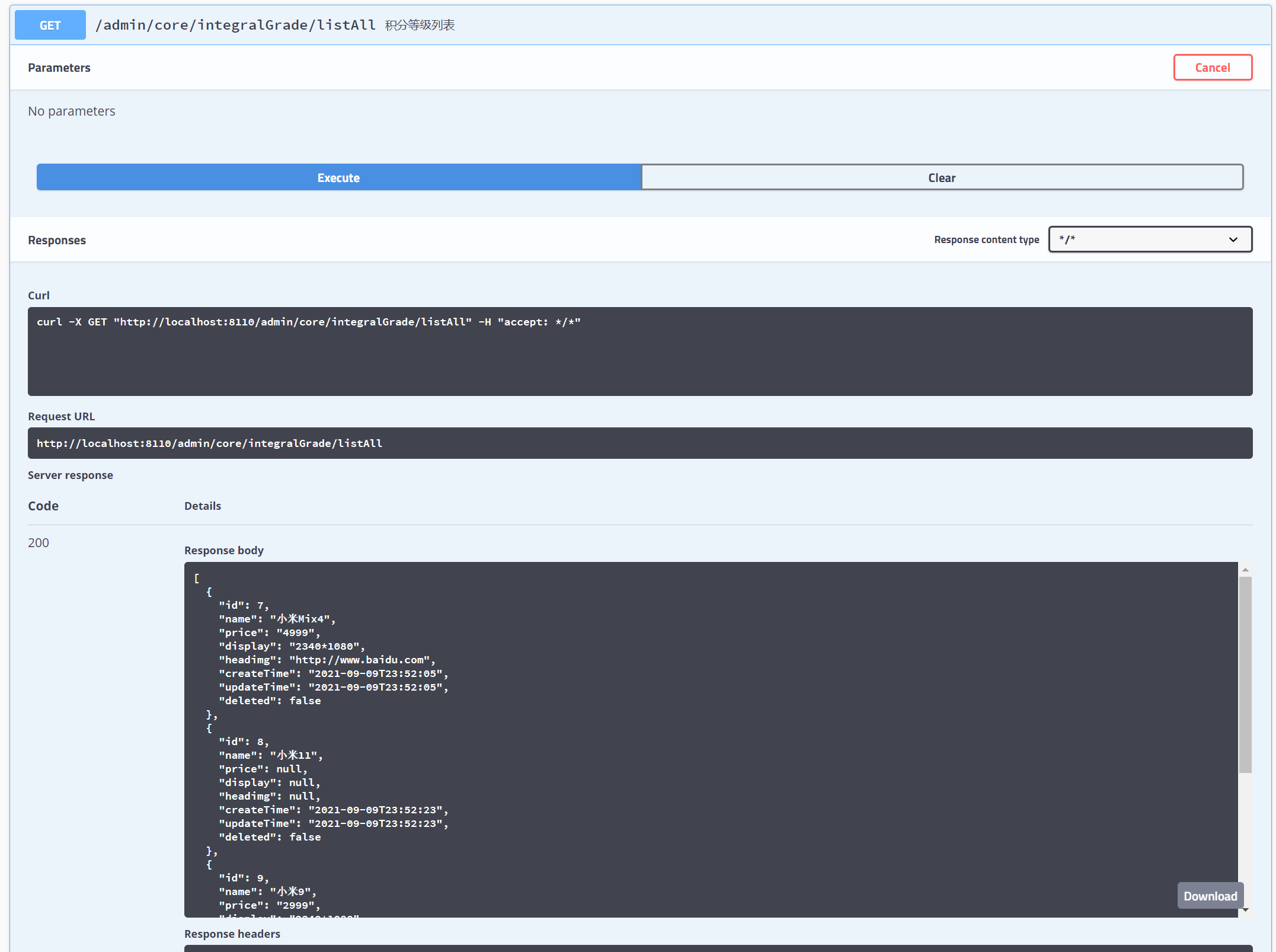

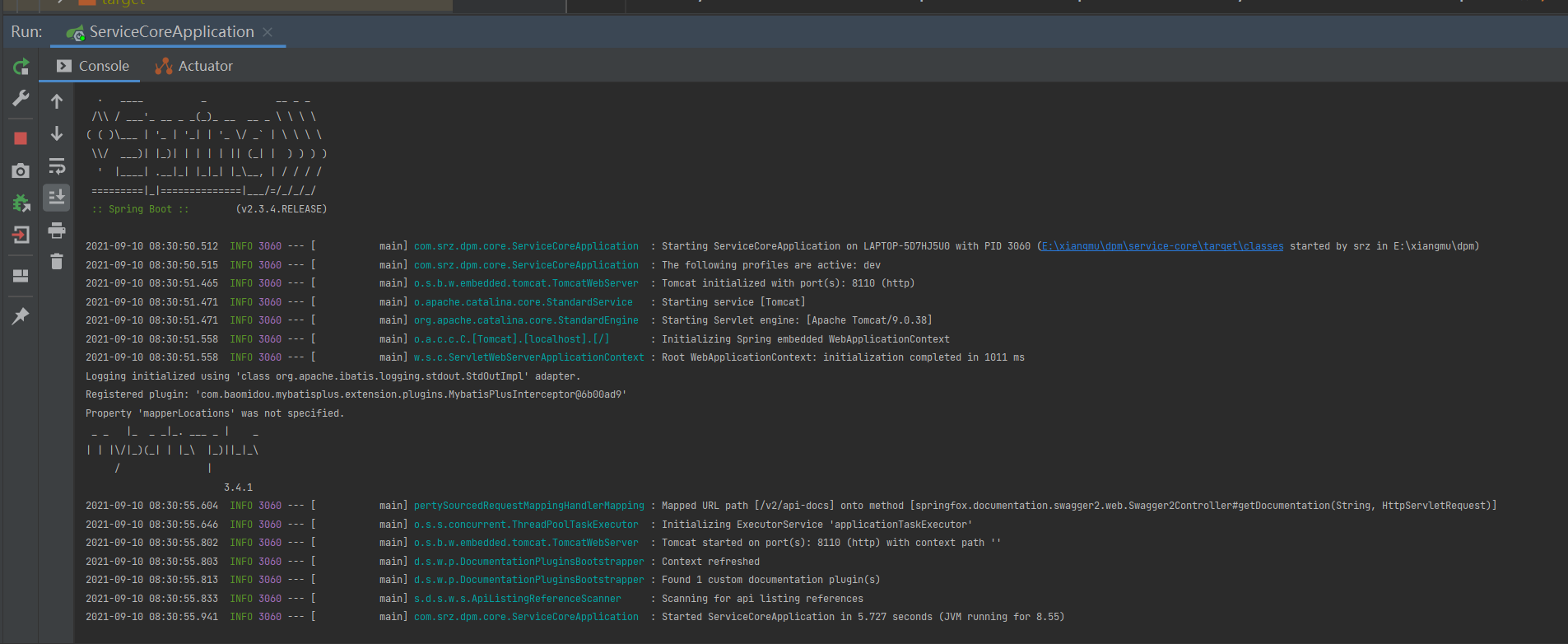

查看控制台8110端口是否成功启动

![image-20210910083123023](https://typora-blog.oss-cn-qingdao.aliyuncs.com/image-20210910083123023.png)



![image-20210910083016910](https://typora-blog.oss-cn-qingdao.aliyuncs.com/image-20210910083016910.png)

![image-20210910083037782](https://typora-blog.oss-cn-qingdao.aliyuncs.com/image-20210910083037782.png)

## 项目开发

### 一、产品接口的CRUD
```java
package com.srz.dpm.core.controller.api;

import com.srz.dpm.core.pojo.entity.ProductParameters;
import com.srz.dpm.core.service.ProductParametersService;
import io.swagger.annotations.Api;
import io.swagger.annotations.ApiOperation;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import result.R;

import javax.annotation.Resource;
import java.util.List;

/**
 * <p>
 * 产品基本信息表 前端控制器
 * </p>
 *
 * @author srz
 * @since 2021-09-09
 */
//跨域
@CrossOrigin
@RestController
@Slf4j
@Api(tags = "参数列表的CRUD")
@RequestMapping("/admin/core/productParameters")
public class ProductParametersController {


    @Resource
    private ProductParametersService productParametersService;
    @Autowired
    private ProductParametersService productParametersService1;


    @ApiOperation(value = "产品信息列表，传统返回值方式")
    @GetMapping("listAll")
    public List<ProductParameters> listAll_O(){
        log.info("数据展示成功");
        return productParametersService.list();
    }



    @ApiOperation(value = "产品信息列表，状态码R类型")
    @GetMapping("listAll_R")
    public R listAll(){
        log.info("数据展示成功");
        List<ProductParameters> list = productParametersService.list();
        return R.ok().data("list",list);
    }

    @ApiOperation(value = "根据id查询产品信息列表")
    @GetMapping("/get/{id}")
    public ProductParameters getById(@PathVariable Long id) {
        log.info("数据展示成功");
        ProductParameters byId = productParametersService.getById(id);
        return byId;
    }

    @ApiOperation(value = "产品信息列表的删除")
    @DeleteMapping("/remove/{id}")
    public boolean removeById(@PathVariable Long id){
        log.info("数据删除成功");

        return productParametersService.removeById(id);
    }

    @ApiOperation(value = "产品信息列表添加")
    @PostMapping("/save")
    public boolean save(@RequestBody ProductParameters productParameters){
        log.info("数据添加成功");

        return productParametersService.save(productParameters);

    }

    @ApiOperation(value = "产品信息列表的修改")
    @PutMapping("/update")
    public boolean updateById(@RequestBody ProductParameters productParameters){
        log.info("数据修改成功");

        return productParametersService.updateById(productParameters);
    }



}
```
### 二、统一结果返回
